Design, Manufacture, Supply and Installation of Lifting Equipment

Swing Jibs

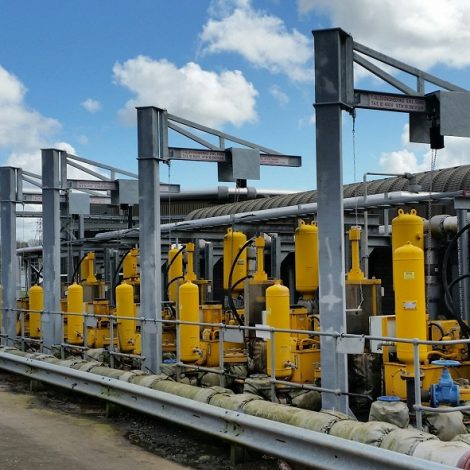

Fixed Pole, fixed point Swing Jibs

Fixed pole swing jibs with one or more fixed suspension points, with a slew of 270 degrees, manufactured from mild steel, galvanised to BS EN 1461.

Available with a range of  working load limits (WLL) and heights of lift, to suit customer requirements.

These can be supplied with either a winched jib arm or a castellated offset shackle, allowing the chain block to be adjusted from the central point of lift.

The swing jib can be supplied in a range of reaches, to suit individual customer requirements and can be surface, side or steel mounted.

Subject to customer requirements, this davit can also be supplied in stainless steel 304 or stainless steel 316.

Designed, manufactured and can be installed by T Allen Engineering Services Ltd

Fixed Pole Monorail ‘I’ Beam Swing Jibs

Fixed pole monorail swing jibs with a slew of 270 degrees, manufactured from mild steel, galvanised to BS EN 1461.

Available with a range of  working load limits (WLL) and heights of lift, to suit customer requirements.

The combination of the ‘I’ beam section monorail arm and the 270 degree slew, gives this swing jib flexibility for adjustment of reach, when lifting, lowering and positioning a load.

Designed to accommodate one or multiple runway beam trolleys, for attaching manual hand chain blocks, or can be supplied with integrated manual hand chain blocks and trolleys with a protective housing.

These swing jibs can also be supplied with powered travel and/or powered lift hoists complete with weather resistant housings.

Supplied in a Range of different heights of lift and reaches, to suit individual customer requirements. These can be surface, side or steel mounted.

Subject to customer requirements, this jib can also be supplied in stainless steel 304 or stainless steel 316.

Designed, manufactured and can be installed by T Allen Engineering Services Ltd

Fixed Pole Profile Monorail Track Swing Jibs

Fixed pole monorail swing jibs with a slew of 270 degrees, manufactured from mild steel, galvanised to BS EN 1461.

Available with a range of  working load limits (WLL) and heights of lift, to suit customer requirements.

The combination of the profile monorail track and the 270 degree slew, gives this jib flexibility for adjustment of reach when lifting, lowering and positioning a load.

Supplied with one or multiple internal track lug trolleys for suspending manual or powered hoists.

The jib can be supplied in a range of different heights of lift and reaches to suit individual customer requirements and can be surface, side or steel mounted.

Subject to customer requirements, this jib can also be supplied in stainless steel 304 or stainless steel 316.

Designed, manufactured and can be installed by T Allen Engineering Services Ltd.

T Allen Engineering Services Ltd hold manufactured stocks of up to 100 monorail track swing jibs at all times.

An Example Selection of swing jib specifications

Swing Jib Type WLL(kg) Max Reach (mm) Rotation (Degrees) Under-beam Height (mm) Base plate Dimension (mm) Overall Height (mm) Fixing Holes Fixing Size Finish
Fixed Pole Over-braced Jib Arm 0-500 1500 270 2300 400 X 400 2975 4 M20 Galvanised/Powder Coat
Fixed Pole Over-braced Jib Arm 0-500 2000 270 2300 400 X 400 2975 4 M20 Galvanised/Powder Coat
Fixed Pole Over-braced Jib Arm 0-1000 2000 270 2300 500 X 500 2500 8 M20 Galvanised/Powder Coat
Articulated Jib Arm A Range Of WLL, Reach & Height Options Are Available. Please Contact The T-ALLEN Engineering Office To Discuss Your Requirements.
Wall Mounted Jib Arm 0-1000 4000 180 N/A N/A N/A 7 M20 Galvanised/Powder Coat
Bespoke Design Swing Jibs A Range Of WLL, Reach & Height Options Are Available. Please Contact The T Allen Engineering Services Ltd Office To Discuss Your Requirements.
