Uni-Lift 500 Height Safety Davit

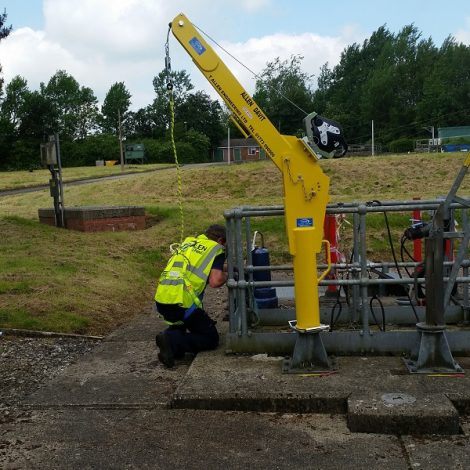

The Uni-Lift 500 is a lightweight, aluminium, portable fall arrest davit, with a 136kg WLL.

Designed and manufactured in a two piece design supplied with an industry standard 65mm universal davit pin to suit T Allen standard sockets. The davit can also be supplied with non-standard pins subject to customer requirements.

The davit has a smooth 360 degree rotation, even under maximum load.

This device has adjustable height/reach settings ranging from 760mm to 1200mm reach and a maximum height of lift of 2483mm.

Manufactured from aluminium with a yellow powder coat finish. Each piece weighs less than 25kgs.

The Uni-Lift 500 has been designed to be used in close proximity to hand-railing without any need for adaption or extension pieces.

Easily transportable and assembled by a single person.

It has no heavy parts or awkward bolts; The two locking and adjustment points on the Uni-Lift 500 davit contain a sleeved hole for ease of use, allowing the fold-down locking pin to slide in easily.

The Uni-Lift 500 body can be supplied with interchangeable arms to accommodate:

Davit Type WLL Reach Height Rotation Pin Diameter Alternative Pin Diameter Finish

Uni-Lift Aluminium

Adjustable Height & Reach

Fall Arrest/Rescue

136kg/6kN

760 mm

1000 mm

1200 mm

2483 mm

2327 mm

2134 mm

360 degrees 65 mm 63.5 mm Powder Coat

Uni-Lift Aluminium

Adjustable Height & Reach

Man Riding/Fall Arrest

136kg/6kN

760 mm

1000 mm

1200 mm

2483 mm

2327 mm

2134 mm

360 degrees 65 mm 63.5 mm Powder Coat

Steel Lean-over Fall Arrest Davit

Designed and manufactured in a two piece design supplied with an industry standard 65mm universal davit pin to suit T Allen standard sockets. The davit can also be supplied with non-standard pins subject to customer requirements.

The davit has a 360 degree rotation with a range of reach dimensions.

Manufactured from mild steel with galvanised finish.  These davits can also be supplied manufactured from stainless steel 304 or 316 to suit customer requirements.

Easily transportable and assembled by a single person.

Davit Type WLL Reach Height Rotation Pin Diameter

Alternative Pin

Diameter

Finish
Steel Lean-over Fall Arrest 136kg/6kN 760 mm 1960 mm 360 degrees 65 mm 63.5 mm Galvanised
Steel Lean-over Fall Arrest 136kg/6kN 1000 mm 1960 mm 360 degrees 65 mm 63.5 mm Galvanised
Steel Lean-over Fall Arrest 136kg/6kN 1200 mm 1960 mm 360 degrees 65 mm 63.5 mm Galvanised
Steel Lean-over Man-riding Winch  136kg/6kN  760 mm  1900 mm  360 degrees  65 mm  63.5 mm Galvanised
Steel Lean-over Man-riding Winch  136kg/6kN  1000 mm  1900 mm  360 degrees  65 mm  63.5 mm Galvanised
Steel Lean-over Man-riding Winch  136kg/6kN  1200 mm  1900 mm  360 degrees  65 mm  63.5 mm Galvanised

Fall Arrest / Manriding Davit Sockets

Socket Type
 WLL  Base Dimensions
To Fit 65 mm
Diameter Pin
To Fit 63.5 mm
Diameter Pin
To Fit 75 mm
Diameter Pin
Number of
Fixing Holes
 Fixing Size  Finish
Surface Mount 136kg/6kN 400 mm x 400 mm Yes Yes No 4 M20 Galvanised
Surface Mount 136kg/6kN 250 mm x 250 mm Yes Yes No 4 M20 Galvanised



Socket Type WLL Flange Diameter
Total Depth
Required
To Fit 65 mm
Diameter Pin
To Fit 63.5 mm
Diameter Pin
To Fit 75 mm
Diameter Pin
 Finish
Cast-in (With Tabs) 136kg/6kN 200 mm 350 mm Yes Yes No Galvanised
Grout-in (Without Tabs) 136kg/6kN 200 mm 350 mm Yes Yes No Galvanised



Socket Type
WLL
Dimensions
To Fit 65 mm
Diameter Pin
To Fit 63.5 mm
Diameter Pin
To Fit 75 mm
Diameter Pin
Fixing Size Finish
Bridge Mount 136kg/6kN 250 mm X 250 mm X 250 mm Yes Yes No M16 Galvanised
Inverted Mount 136kg/6kN 400 mm X 400 mm X 312 mm (deep) Yes Yes No M20 Galvanised
