Design, Manufacture, Supply and Installation of Lifting Equipment

Height Safety Frames & Points

T Allen Engineering Services can survey a site, design a solution, manufacture it in house and then install and test your new fall arrest system; providing a truly turnkey solution.

We have the capability to design, manufacture and install a new frame system or restraint post on site to suit the customer specifications.

Our trained engineers can install compliant fall protection systems, into solid or cavity walls or into suitable existing steel work.

Our engineers are fully trained and certified in the design, selection, installation and maintenance of Class A1 Anchor Devices (Safety Harness Eyebolts) for Fall Protection in accordance with BS EN 795.

Fixed Fall Arrest/Man-Riding Gantry Frame

Freestanding or semi supported, designed, tested and rated to suit the customer fall arrest requirements.  A range of width, height and beam configuration options are available.

Please contact the T Allen Engineering Services Ltd engineering office , to discuss your requirements.

Fall Restraint Post

Fall Restraint Type WLL (kg) Overall Height (mm) Base Dimension (mm) Fixing Holes Fixing Size Finish
Freestanding 136/6kN 1120 170 X 170 4 M12 Powder Coat

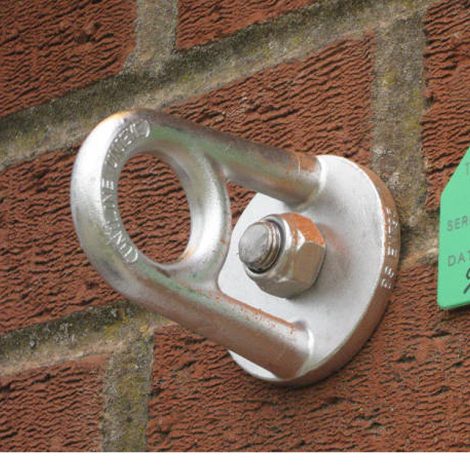

Fall Arrest Anchor Point

Fall Arrest Anchor Point Type WLL (kg) Bolt Length (mm) Bolt Size Fixing Holes Finish
Cavity Fixing 136/6kN 125 M12 1 Bright Zinc Plate
