Bridge & Inverted Davit Sockets

Inverted mounted sockets with holes to suit M20 fixings. Mild steel construction, galvanised to BS EN 1461.

Widely used in steel walkways where a flush installation is required to reduce trip hazards. This type of socket can also be flush mounted within open mesh flooring sections.

Also available manufactured in stainless steel 304 or stainless steel 316 to order.

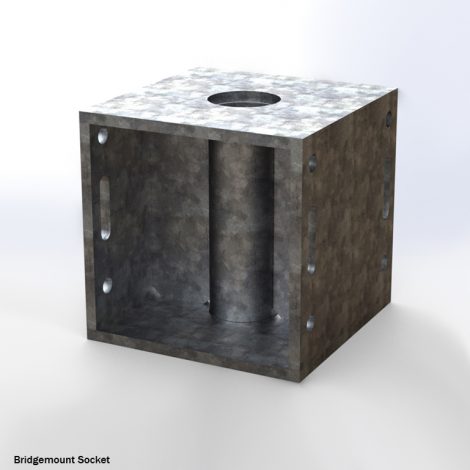

Bridge mounted davit socket with holes to suit M16 fixings. Mild steel construction, galvanised to BS EN 1461.

Widely used in steel walkways where a flush installation is required to reduce trip hazards. This type of socket can also be flush mounted within open mesh flooring sections.

Also available manufactured in stainless steel 304 or stainless steel 316 to order.



Socket Type WLL (kg) Base Dimensions
(mm)
To Fit 65mm
Dia Pin
To Fit 63.5mm
Dia Pin
To Fit 75mm
Dia Pin
Fixing Size Finish PDF
Bridge Mount 500 250 x 250 x 250 Yes Yes No M16 Galvanised images
Bridge Mount 1000 250 x 250 x 250 No No Yes M16 Galvanised
Inverted Mount 500 400 x 400 x 312 (D) Yes Yes No M20 Galvanised images
Inverted Mount 1000 500 x 500 x 350 (D) No No Yes M20 Galvanised images
